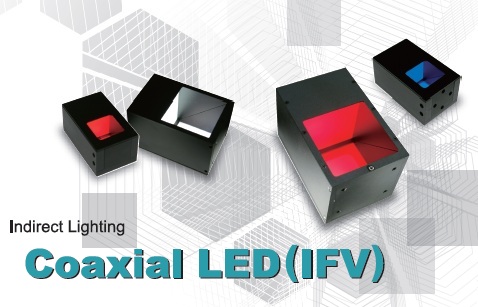

Coaxial LED (IFV)
The coaxial light is designed for use of objects with highly reflective surfaces and is compatible with macro lenses. Applicable uses include inspection of highly reflective surfaces such as wafers, metal, film, liquid crystals, and glass, as well as inspection for patterns on printed boards.
Available Models
| Model |
Color |
Power consumption |
Weight |
Aperture dimensions
(click for diagram) |
| IFV-20R |
Red |
12V/1.0W |
82g |
20mm x 21mm |
| IFV-20W/B/G |
White/Blue/Green |
12V/1.5W |
| IFV-34R |
Red |
12V/2.4W |
132g |
34mm x 40mm |
| IFV-34W/B/G |
White/Blue/Green |
12V/3.9W |
| IFV-34R-24 |
Red |
24V/2.4W |
| IFV-34W/B/G-24 |
White/Blue/Green |
24V/3.9W |
| IFV-40R |
Red |
12V/2.9W |
184g |
40mm x 43mm |
| IFV-40W/B/G |
White/Blue/Green |
12V/4.4W |
| IFV-50R |
Red |
12V/5.8W |
260g |
52mm x 52mm |
| IFV-50W/B/G |
White/Blue/Green |
12V/8.7W |
|
 |
